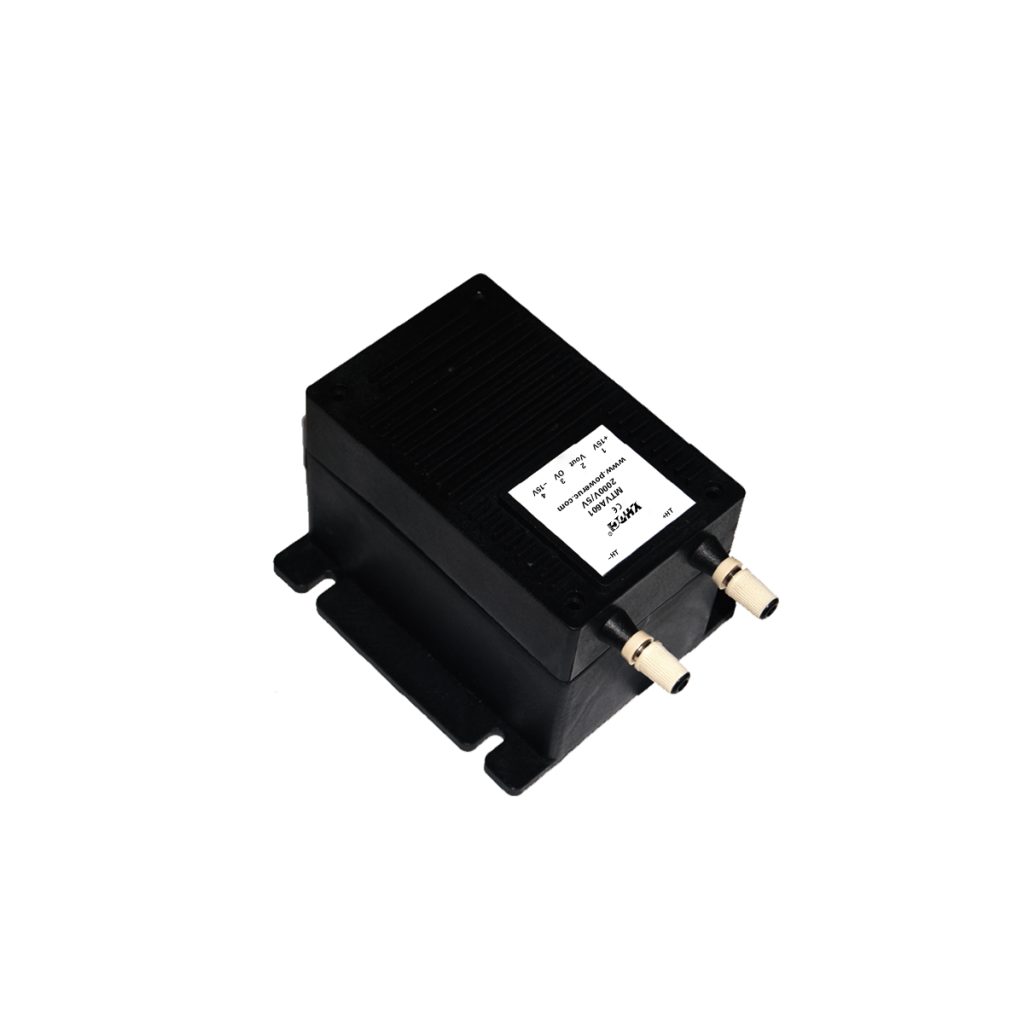

The MTVA product family constitutes a compact voltage sensor range designed to ensure high accuracy in both industrial and traction applications. Engineered for the electronic measurement of voltages, including DC, AC, and pulsed voltages, these sensors feature galvanic separation between the primary and secondary circuits.
Bipolar and insulated measurement up to 3000 V
Unipolar and insulated measurement of positive voltage up to 1500 V
A unique design to cover all measuring ranges
Low consumption and low losses
Compact design
Good behavior under common mode variations
Excellent accuracy (offset, sensitivity, linearity)
Good delay time
Low temperature variation
High immunity to external interferences.
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Renewable Energy (Solar and Wind)
Single or three phase inverters
Propulsion and braking choppers
Propulsion converters
Auxiliary converters
High power drives
Substations
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Voltage (RMS) | 1000V-4000V |
| Rated Output | ±5V |
| Power Supply Voltage | ±12V, ±15V |
| Input Connection Type | Cable, Bolt |
| Output Connection Type | Screw Terminal |
| Mounting Type | Plate |
