Introduce:
The SCT010T is a professional split‑core current transformer featuring integrated screw terminals for clean, custom‑length wiring. Designed with a compact 10 mm aperture and Class 0.2 revenue‑grade accuracy, it provides precise current measurement on AC circuits up to 80A.

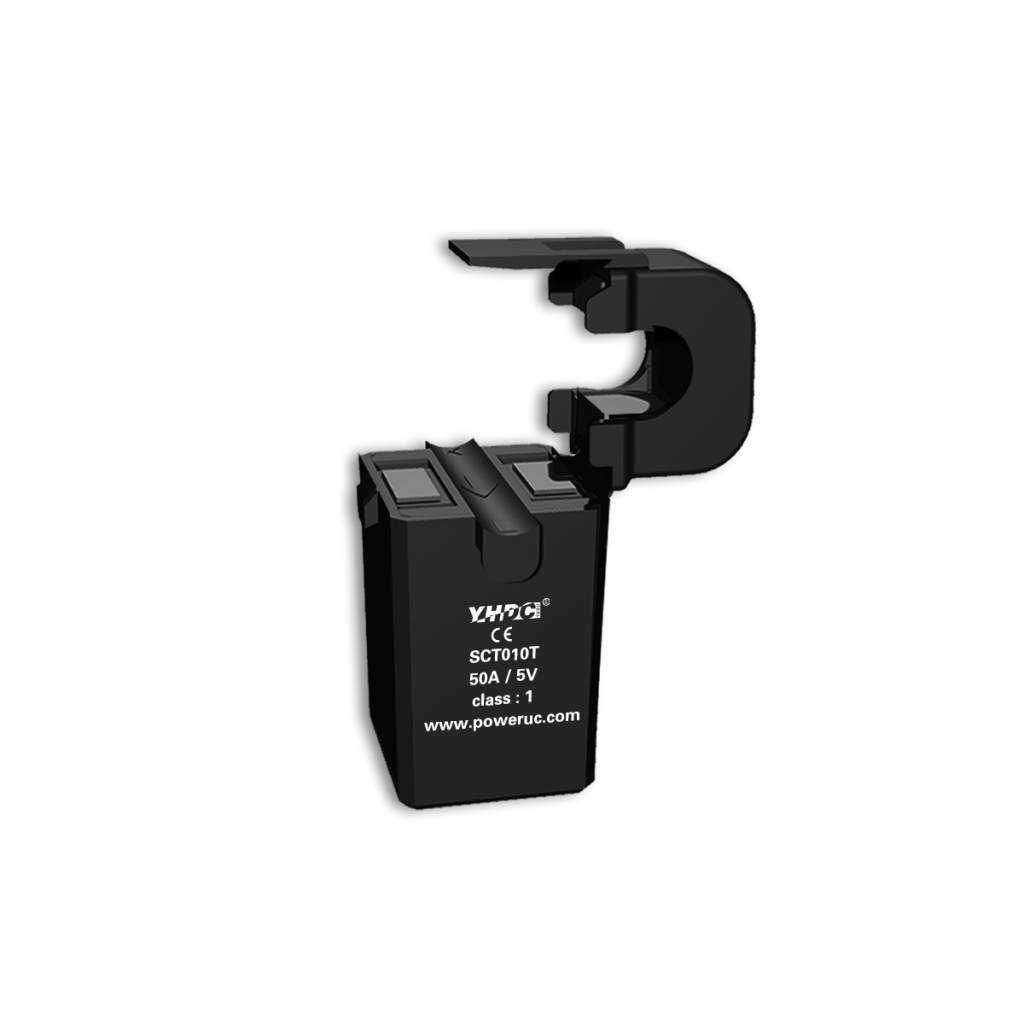

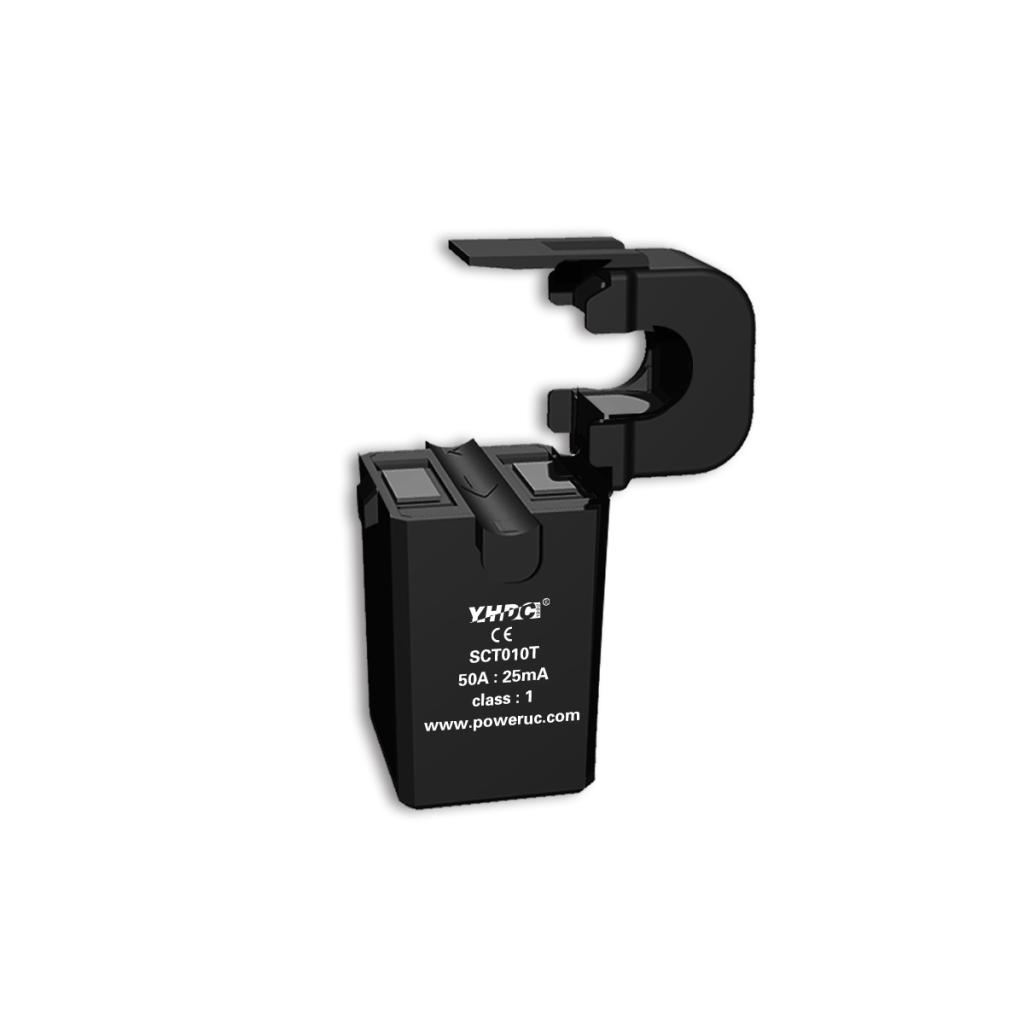

The no‑lead terminal design offers maximum flexibility for panel builders, industrial controllers and IoT energy systems, while the snap‑on split‑core structure enables non‑intrusive installation without power interruption. SCT010T is particularly well suited for energy auditing, smart metering and sub‑metering applications.
Characteristic:
- Safety lock buckle
- Easy installation
- Screw terminal output
- ⌀10 mm sensing aperture for non-contact measurement
Technical index:
- Mounting type: Free hanging (In-Line)
- Material of core: Ferrite
- Applicable standards: IEC 61869-2
- Operating temperature: -25℃ ~ +70℃
- Storage temperature: -30℃ ~ +90℃
- Frequency range: 50Hz-1KHz
- Waterproof grade: IP00
- Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz Output/Housing AC 3.5KV/1min 50Hz
Applications:
Current measurement, monitoring and protection for electrical wiring and equipment,IoT energy monitoring systems.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.
