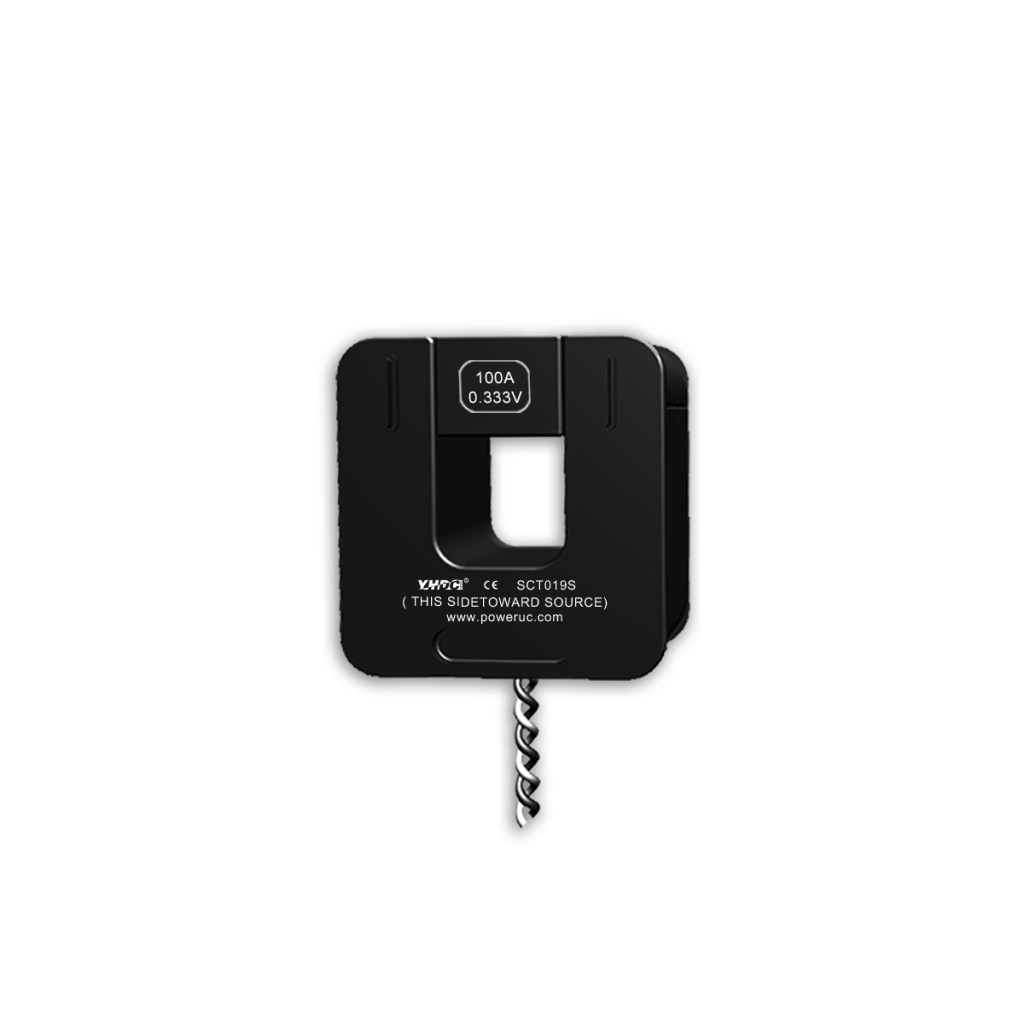

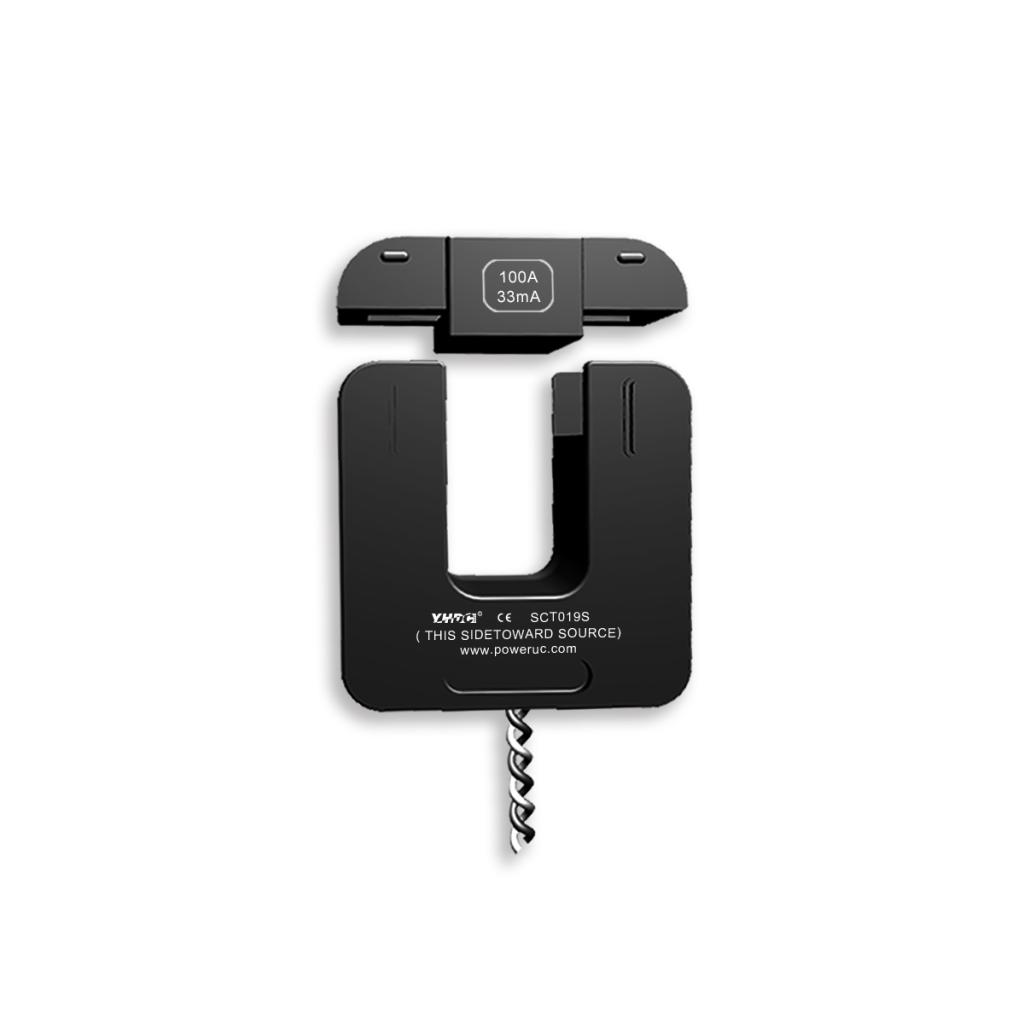

Split-core current transformers , which feature a removable “leg” for easy, non-intrusive installation, are specifically engineered for retrofit applications.
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.
| Core Type | Split-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | Φ19mm |
| Rated Input | 50A-300A |
| Output Type | AC |
| Rated Output | 33mA, 0.333V |
| Accuracy | 1% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
