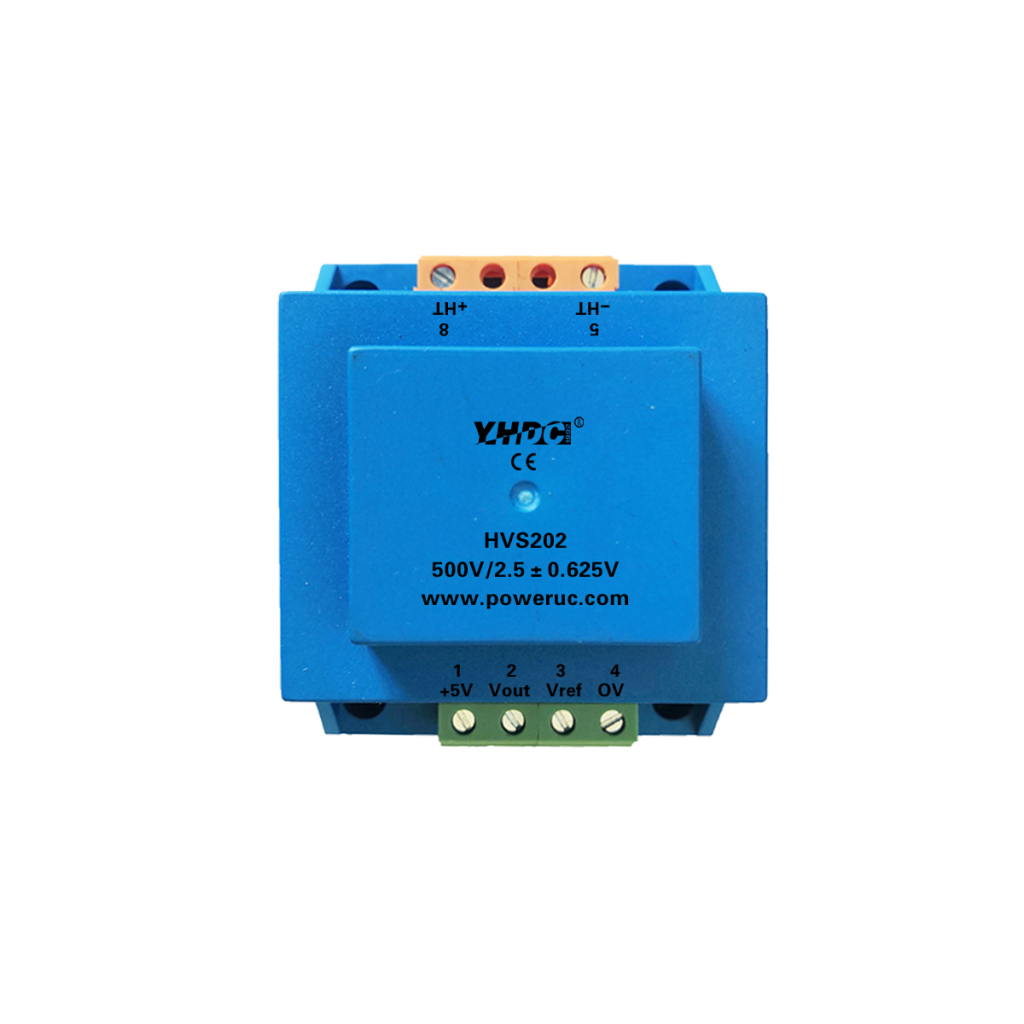

The HVS202 Voltage sensors are meticulously crafted for the accurate measurement of DC, AC, or pulsed currents, all while ensuring robust galvanic isolation between the primary and secondary circuits.
These voltage sensors are designed for panel mounting and leverage closed-loop Hall effect technology, guaranteeing precision and dependability. This technology renders them exceptionally suitable for a wide spectrum of applications, encompassing both industrial and traction contexts.
Closed loop (compensated) Hall effect sensor
Insulating plastic case recognized according to UL 94-V0
Primary resistor – incorporated within the housing
Excellent accuracy
Very good linearity
Low temperature drift
Optimized delay time
Wide frequency bandwidth
High immunity to external interference
No insertion losses
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Power supplies for welding applications
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Voltage (RMS) | 500V-1000V |
| Rated Output | 2.5±0.625V |
| Power Supply Voltage | 5V |
| Input Connection Type | Screw Terminal |
| Output Connection Type | Screw Terminal |
| Mounting Type | Plate |
