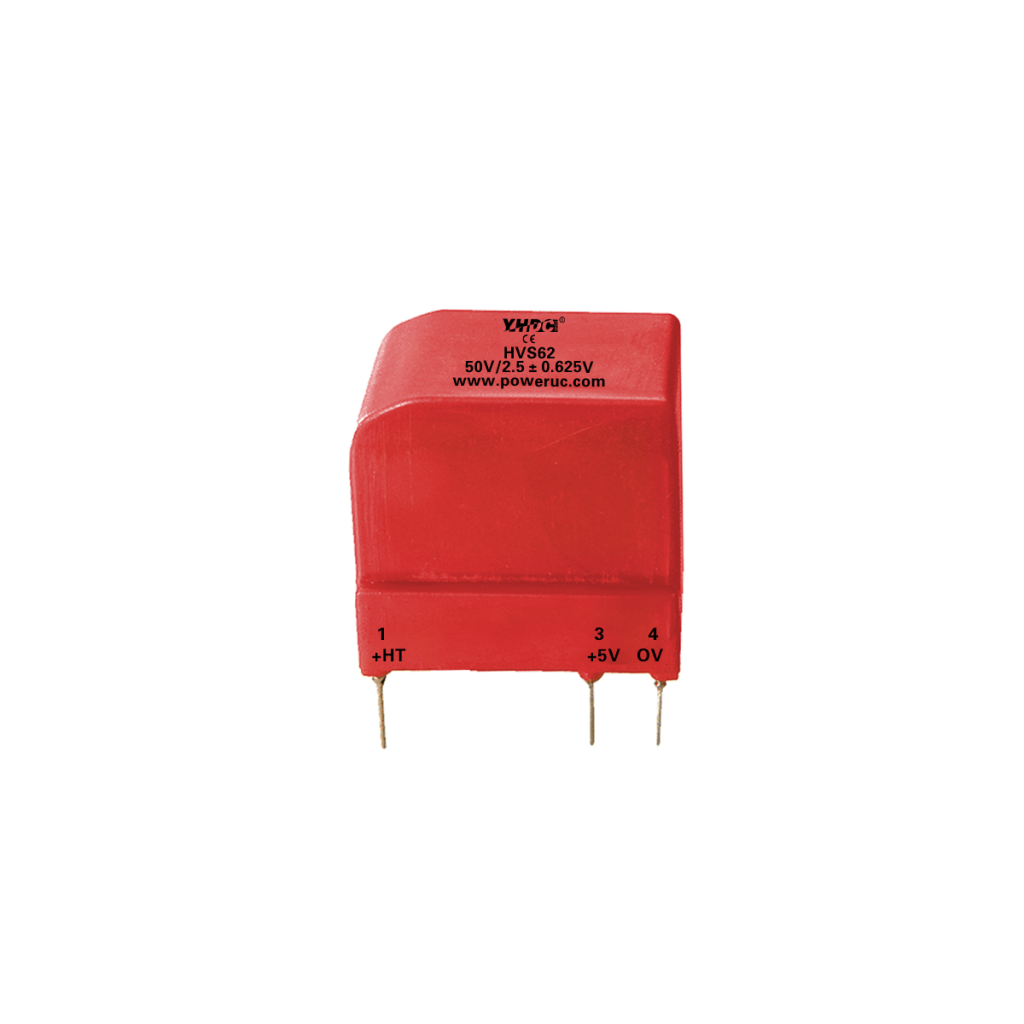

HVS62 is a Closed Loop Hall effect Voltage transducer.
the HVS62 Voltage sensors are meticulously crafted for the accurate measurement of DC, AC, or pulsed currents, all while ensuring robust galvanic isolation between the primary and secondary circuits.. To be mounted on PCB.
Closed loop (compensated) voltage transducer using the Hall effect
Insulating plastic case recognized according to UL 94-V0.
Excellent accuracy
Very good linearity
Low thermal drift
Low response time
High bandwidth
High immunity to external interference
Low disturbance in common mode
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Power supplies for welding applications
| Input Type | AC, DC |
| Output Type | Instantaneous |
| Rated Input Voltage (RMS) | 50V-200V |
| Rated Output | 2.5±0.625V |
| Power Supply Voltage | 5V |
| Input Connection Type | Busbar built-in |
| Output Connection Type | Pins |
| Mounting Type | PCB |
