Split core current transformers

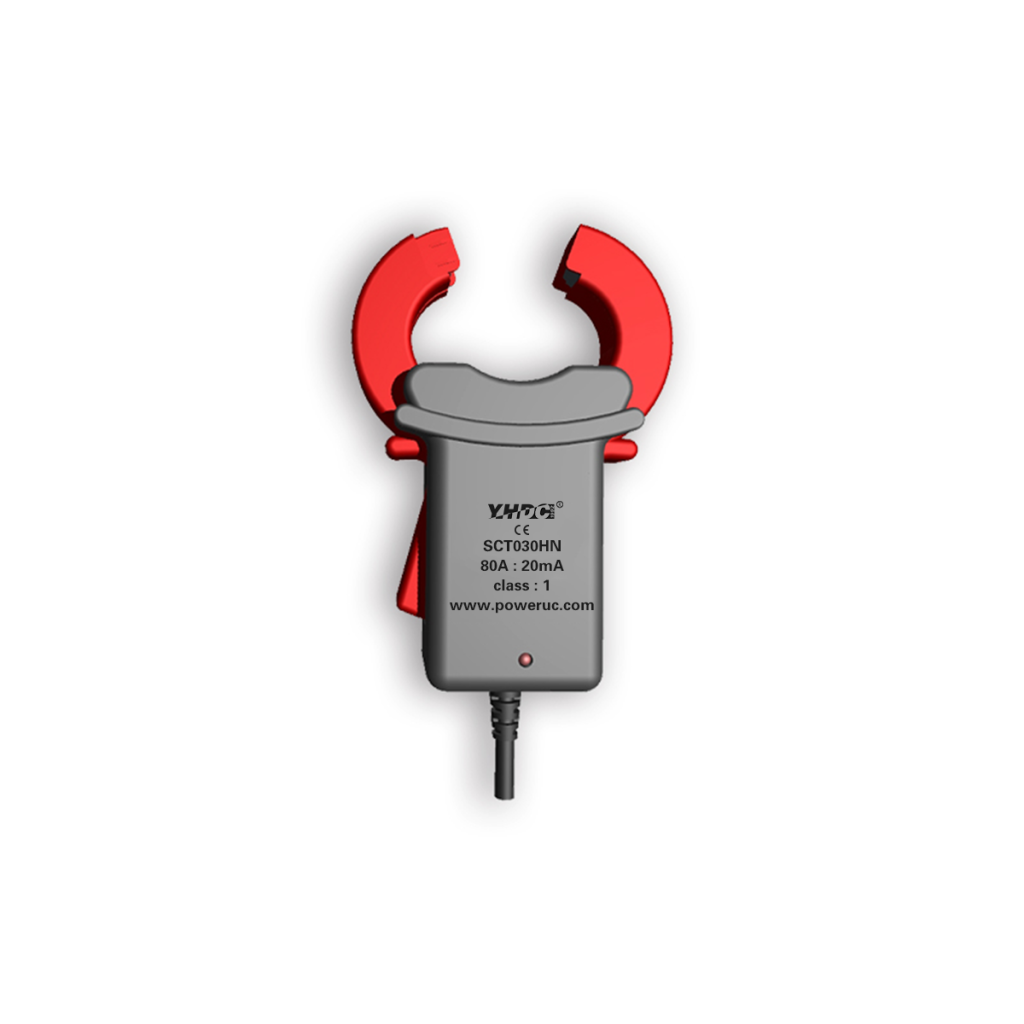

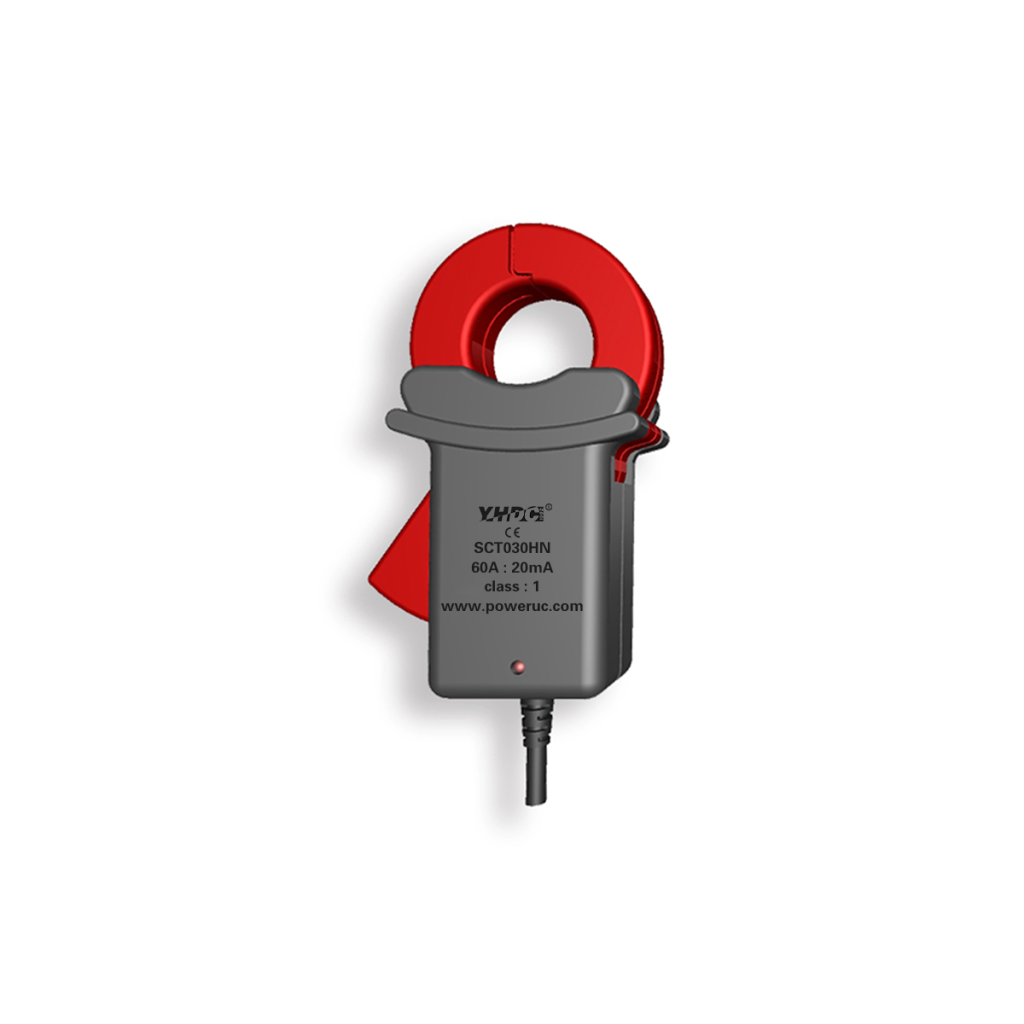

The round jaw design on the SCT030HN type AC current clamp on CT along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important from 20Hz to 20MHz.
Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation-control system.
Current, power and energy monitoring device.
Relay protection device.
| Core Type | Split-Core |
| Core material | Silicon steel sheet, Permalloy |
| Mounting Type | Hand-held |
| Size of the opening | Φ30mm |
| Rated Input | 10A-80A |
| Output Type | AC |
| Rated Output | 20mA, 0.333V |
| Accuracy | 1% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 20Hz - 20Hz |
| Connection Type | Cable |
