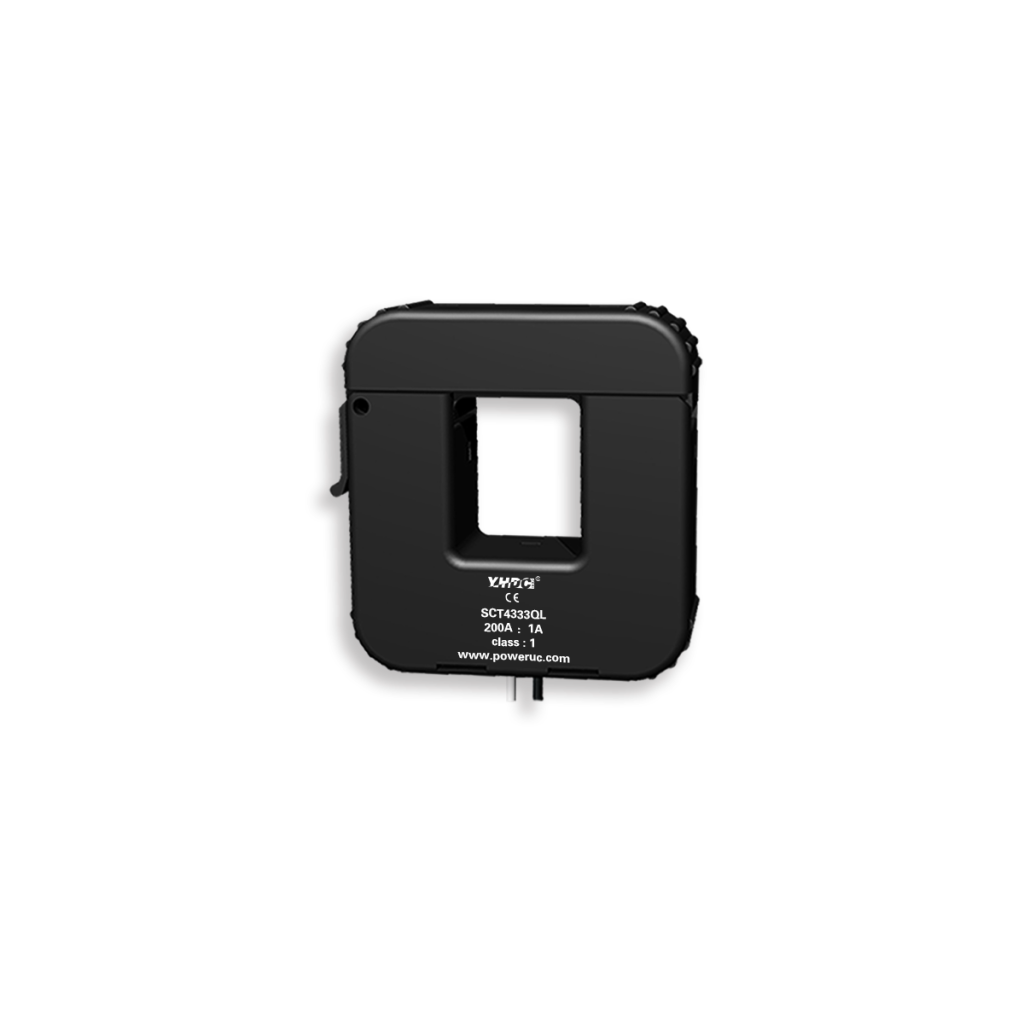

The SCT series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.

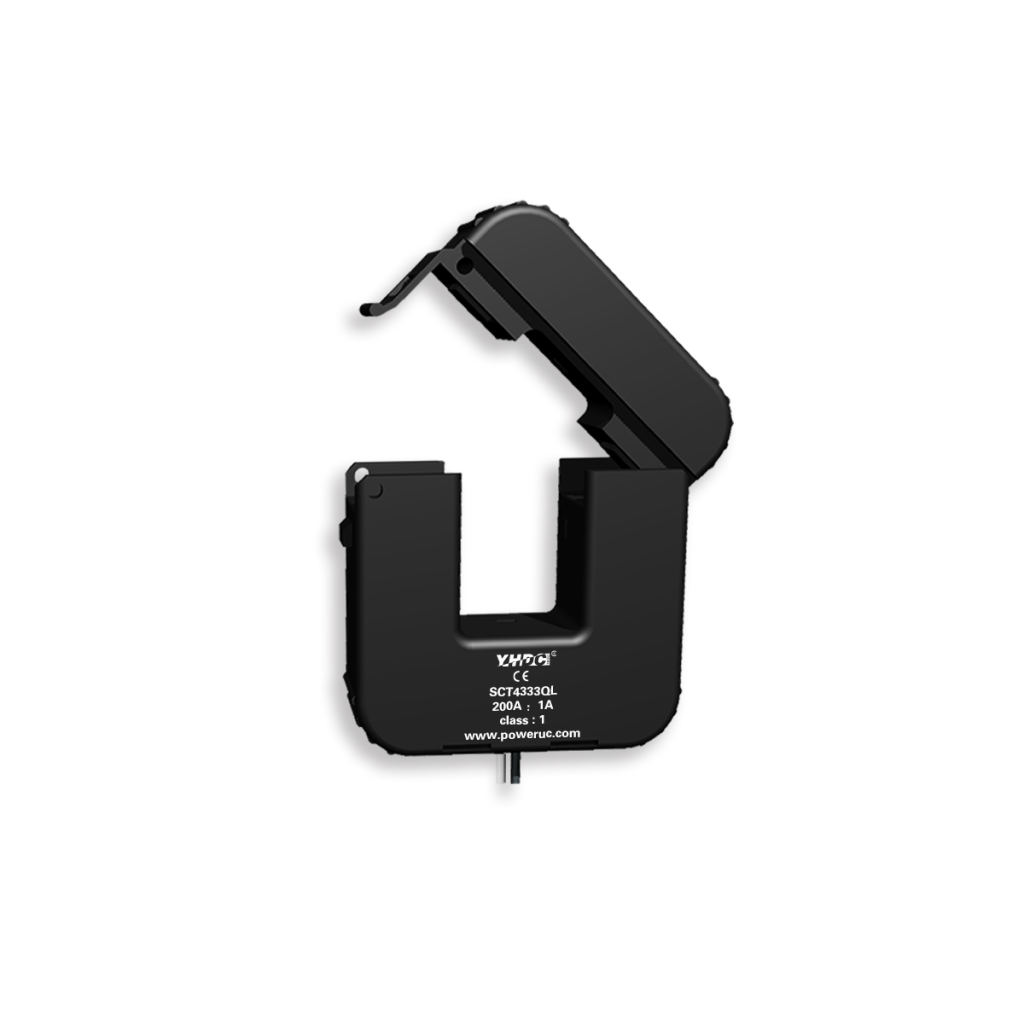

Safety lock buckle
easy installation
Mounting type: Free hanging (In-Line)
Material of core: Laminated silicon steel
Applicable standards: GB20840-2014
Operating temperature: -25℃ ~ +70℃
Storage temperature: -40℃ ~ +85℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength: 3.5KV 50Hz 1min(enclosure/output)
| Core Type | Split-Core |
| Core material | Laminated silicon steel |
| Mounting Type | Free Hanging(In-Line) |
| Size of the opening | 33.4*44.2mm |
| Rated Input | 100A-600A |
| Output Type | AC |
| Rated Output | 50mA, 0.1A, 1A, 5A, 0.333V |
| Accuracy | 0.5%, 1%, 3% |
| Dielectric Strength | AC 3.5KV/1min 50Hz (housing to output) |
| Frequency Range | 50Hz - 60Hz |
| Connection Type | Cable |
